SEAM

Portal

The high output rate of the extruder enables integration in a gantry machine for the production of large components.

◼ Collaboration with CMS Industries in Italy.
Kinematics:
• 5-axis portal kinematics
• Automatic switching between 3D printing and milling

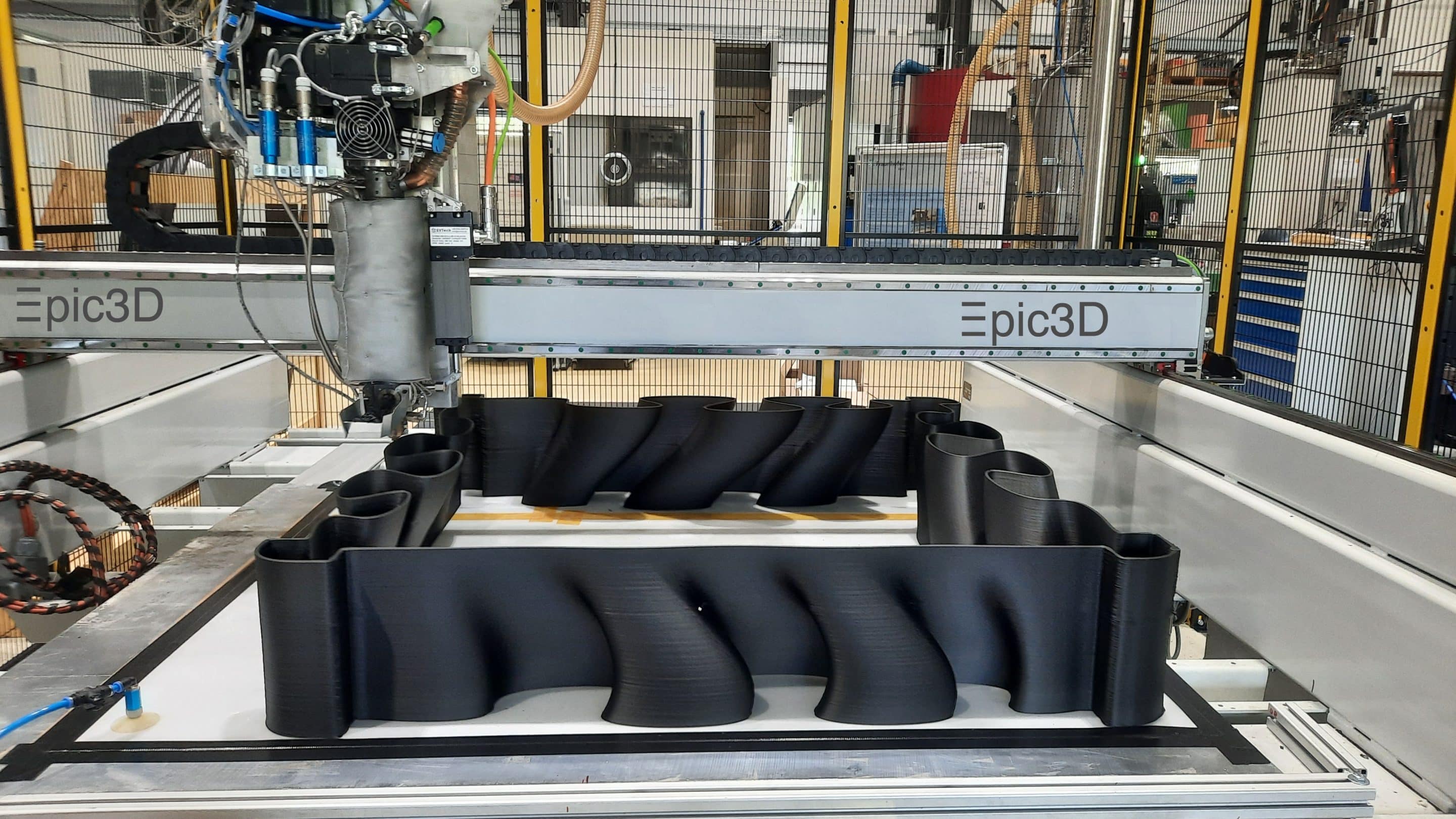

3D printing of large structures

€ from 200.000

printing area 2.000mmx2.000mmx600mm
3-axis printing of large format parts
dynamic system with feed rates of up to 15m/minute and max. 10kg/ hour controlled output rate
lowest investment for starting with industrial grade 3D-printing from granules
container ready solution to be fitted in a 20″ standard container
G-code standard slicers can be used
container ready solution to be fitted in a 20″ High Cube
vacuum clamping syste
heated print bed
45¬∞ nozzle
